We convert your Sketches into Professional Looking Floor Plans

Floor Plans in 3 Easy Steps

Sketchplan offers an affordable solution to transform your hand-drawn sketches or existing floor plans you into high-quality 2D or 3D floor plans. Our service is a cost-effective alternative to our professional floor plan service, allowing you to achieve professional-looking results without breaking the bank.

Sketch & Order

Sketch your floor plan using the download graph sheet. Read our how-to-guide to understand what to include in your sketch. We can make it as simple or as complex as you require. We have two types of floor plan to choose from – 2D or 3D interactive. Order and pay for your desired plan from our online store and you will get a floor plan drawn by professional from sketch

Scan & Send

Once you have ordered your plan, we’ll email you confirmation. Scan in your sketch – or take a high quality photo – and email it to the address specified in your confirmation email. Leave the rest to us – we will have your sketch produced and in your inbox within 24 – 36 Hours excluding weekends and holidays. Just sit back and wait.

Check & Amend

Upon receiving your professional floor plan, check it carefully. One round of amends is included in the price. These will need to be sent via email within one week of receiving your plan. We are sure you’ll be very happy with the end results, so we thank you and hope you use Sketchplan again in the future.

Get Started Today

Floor Plans in a Flash!

Sketchplan is part of Photoplan  – who have many years experience producing professional floorplans for property professionals. Photoplan was established in 2004 providing clients with exceptional property marketing services from photography to floor plans and everything in between.

Photoplan offers a comprehensive service includes high-end Property Photography, Floor Plans, Land Registry Compliant Lease Plans, 360 virtual Tours, 3D Architectural Visualisation, Virtual Staging and Property Videos. In addition to this, Photoplan also boasts a comprehensive in-house graphic and web design service for your brochures, property marketing, websites and all advertising needs.

All you need to do is sketch the layout of the floor plan/property, order your required sketch through our online store and send us an email with the scanned sketch. We will then convert your sketch into a professional looking floor plan within 24 – 36 Hours, It really couldn’t be any simpler.

With our easy-to-use platform, simply upload your hand-drawn sketches, and our team of experts will convert them into professional looking floor plans. You can choose between 2D or 3D plans, and we can even add in furniture and fixtures to give you a better sense of the space.

Our service is ideal for homeowners, architects, interior designers, and real estate professionals looking for a quick and affordable way to create floor plans. We understand that not everyone has the budget for a professional floor plan service, which is why we’ve designed Sketchplan to provide a cost-effective solution without compromising on quality.

At Sketchplan, we pride ourselves on delivering high-quality results and excellent customer service. Our team of experts is always available to answer any questions you may have and provide you with the support you need to create the perfect floor plan for your property. Contact us today to learn more about our services and how we can help you bring your vision to life or simply place your order and your floor plan will be on it’s way.

Quick Turnaround

We pride ourselves on speed. We aim to get your professional floorplan to you within 24 – 36 Hours of receiving your sketch. It’s as simple as that.

Professional Quality

Having been involved in the property marketing industry for over 10 years, we know exactly what is required to produce a professional floorplan, at a fraction of the cost.

Clear Communication

We will keep you informed regularly about your order and if there are any problems with your sketch. We are also on hand should you have any questions that need answering.

Can I see some examples of 2D and 3D floor plans?

Yes, simply view our examples page, which includes samples of sketches, 2D floor plans and of 3D floor plans. We offer cost-effective floor plan from a very low price point. If you would like your floor plan to also be converted into a 2D or 3D  floor plan.

See Examples
Order 2D Floor Plans
Order 3D Floor Plans

How can I order and send my sketch online?

Check out our how-to-guide to understand what elements to include in your sketch. Then got to our ORDER NOW shop upload your sketches and purchase according to the number of bedrooms in your floor plan. You will then receive your 2D floor plan within 36 hours.

Start Drawing
Download Graph Paper

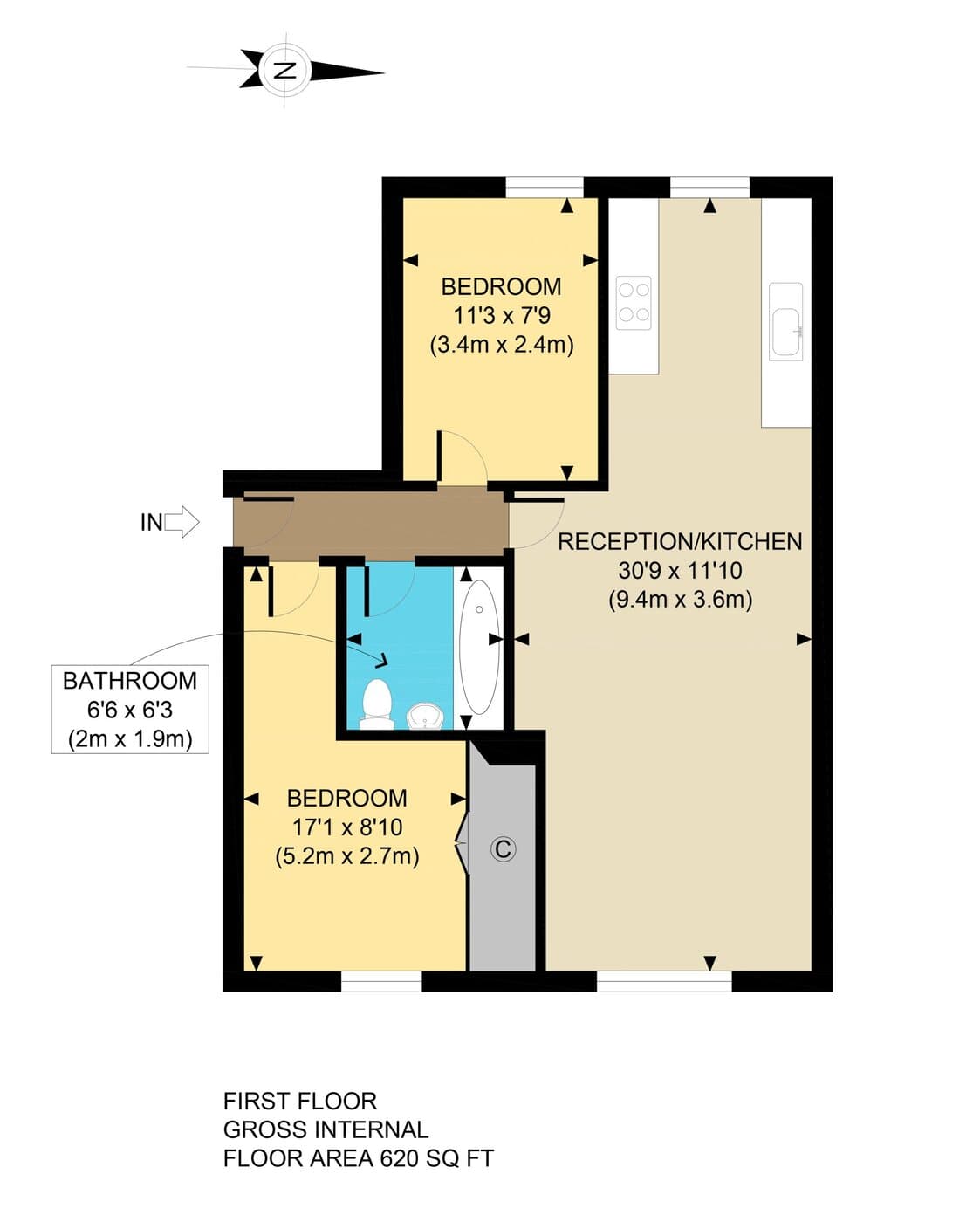

2D Floor plan PORTFOLIO

Order 2D Floor Plans
2d Examples

3D Floor Plan Portfolio

Previous
Next
3d Examples
Order 3D Floor Plans

Our Other Sites

The Devil is in the Detail

March 8, 2023 No Comments

The more information you give us in the sketch the better the floor plan we can produce. When it comes to creating a floor plan, accuracy and detail are key.

Read More »

Time to get Sketching!



Sketchplan – International House, 1 St Katharine’s Way, London, E1W 1UN, United Kingdom



info@sketchplan.com

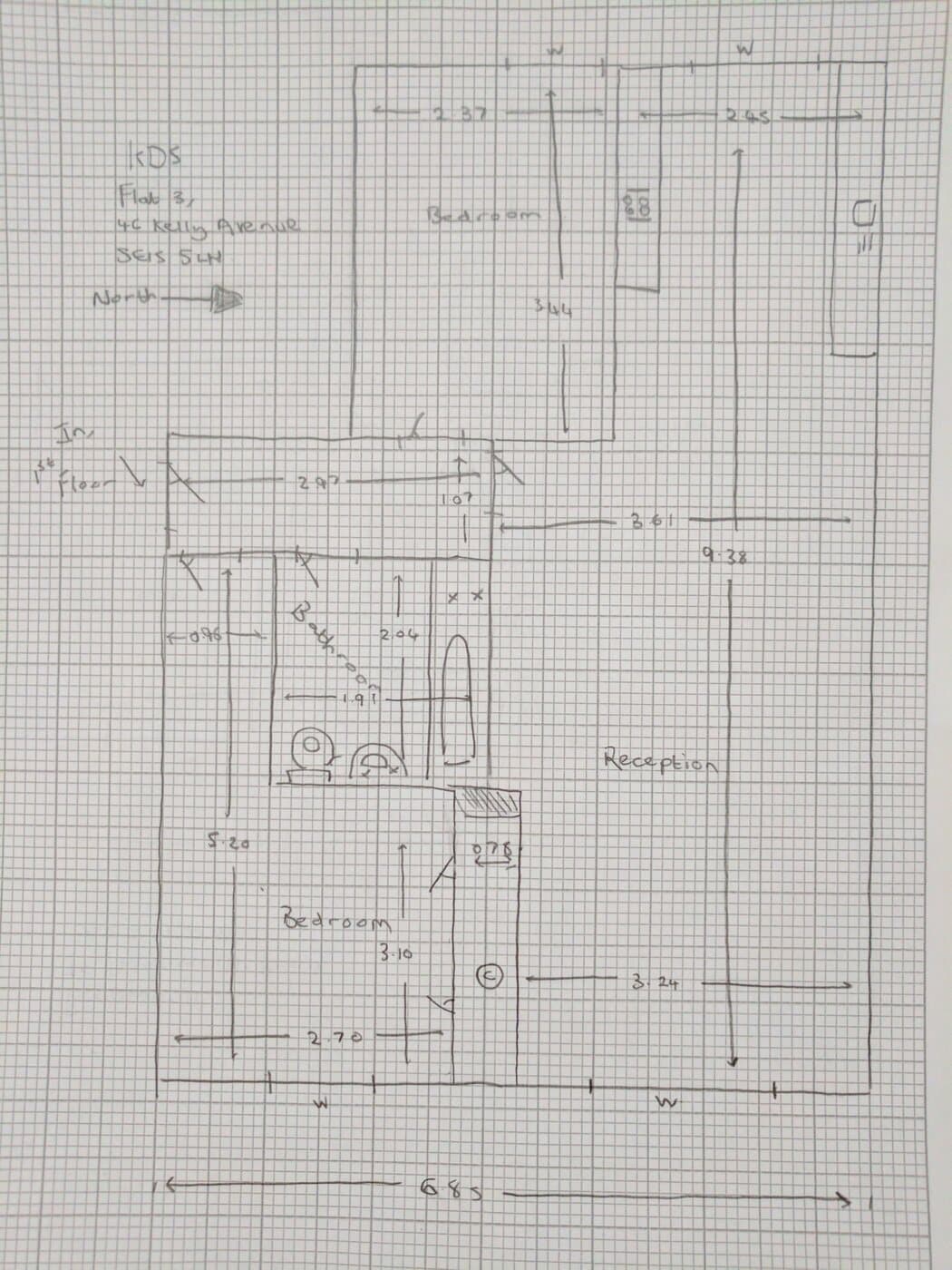

Start Your Sketch

It is always best to start in a corner of your graph paper. Using graph paper is advisable as it is easier to follow straight lines. Although it is not always vital that your sketch is perfectly in proportion it is recommended that you try to keep spaces in proportion relative to each other and use the scale provided. This way any discrepancies can be avoided by refering to the sketch and measurements rather than just one or the other.

Use a nice sharp pencil or retractable pencil and always keep a rubber handy! Use a clipboard or a book to ensure your sketch is as neat as possible.

Download Graph Paper
Next Step - Measuring Rooms

Measuring Rooms

If you intend on making a few plans it may be advisable to invest in a laser measuring device. If not then a measuring tape can be used. Remember to measure the widest parts of the room to gain its main dimensions. If the room is an irregular shape i.e is ‘L’ shaped or has a diagonal or rounded wall then it is advisable to take a few measurements and add these to your sketch. It may sound obvious but do remember to name rooms clearly and put all dimensions on your sketch.

Remember that these are not architectural plans but just for reference so this does not have to be a work of art just clear and as accurate as possible. If any room has an area that is below 6ft then this is marked down as RHH or RCH (restricted head height / restricted ceiling height)

Generally measurements should be provided in feet and inches but your plan will be provided with both feet and meters.

Previous Step - Measuring Rooms
Next Step - Hallways & Landings

Hallways / Landings and Stairs

Previous Step - Measuring Rooms

From our experience hallways will draw themselves. Not literally but if you correctly mark down all the rooms the spaces left should create these spaces which you can then simply block in. Hallways and stairs don’t necessarily need measurements unless they seem to be notably large spaces in which case feel free to add measurements.

Next Step - Adding Floors

Adding Floors

Firstly remember to name each floor! First floor, second floor etc. If you have a basement then please add this in too. Lay out floors as clearly as possible. In general floors can be fit on to the same page but if you need to use another page then do so. It is important that you add page numbers too. i.e. page 1/2 page 2/2 etc.

If you property is a flat then please label as such i.e GFF (ground floor flat), FFF (first floor flat), SFF (second floor flat) etc

Previous Step - Hallways & Landings
Next Step - Gardens

Gardens / Terrace Areas

Gardens can be quite large and we don’t expect you to draw to scale the whole thing. It is most important you draw the shape of the garden in relation to the immediate vicinity of the building. The rest can added stating ‘Garden extends to…’. Add zigzag markings to indicate that the whole garden is not drawn on.

As always label these areas. Add hatching to them too to indicate that they are external areas.

Previous Step - Adding Floors
Next Step - North Points

North Points

It is best to use a compass to draw on the an accurate north point. Place the compass on your sketch in line with the ‘IN’ (entrance). Position yourself so your sketch is facing the same way as your property. Mark down the north point.

Previous Step - Gardens
